DS-7608NI-K1/8P
8-ch 1U 8 PoE 4K NVR
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
Smart Function
- 4-ch Motion Detection 2.0
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)
Network & Ethernet Access
- 8 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- Hik-Connect for easy network management
Product Specifications
Human/Vehicle Analysis |
4-ch |
IP Video Input |
8-ch |
Incoming Bandwidth |
80 Mbps |
Outgoing Bandwidth |
80 Mbps |
HDMI Output |
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
VGA Output |
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode |
HDMI/VGA simultaneous output |
Decoding Format |
H.265+/H.265/H.264+/H.264 |
Decoding Capability |
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
SATA |
1 SATA interface |
Capacity |
Up to 8 TB capacity for each disk |

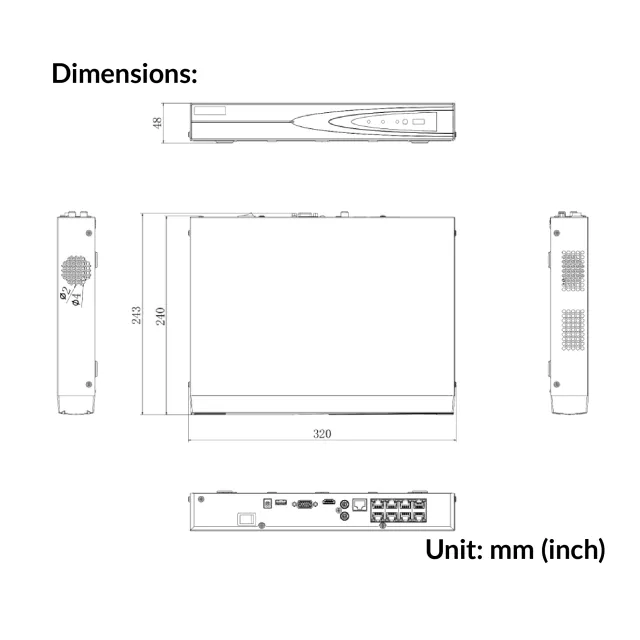

Dimension (W × D × H) |
320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) |
Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
