4MP Fixed Dome Network Camera | DS-2CD1143G0-I 1

4MP Fixed Dome Network Camera | DS-2CD1143G0-I 2

4MP Fixed Dome Network Camera | DS-2CD1143G0-I

$365.04 incl.GST 8% per sqft

4MP
1/3″ Progressive CMOS, ICR
2560 × 1440@20fps
H.265+/H265/H.264+&H.264, 3D DNR, BLC
IR range: up to 30m, DC12V & PoE
Support mobile monitoring via Hik-Connect

*Power supply not included

Category: All

Description
Reviews (0)

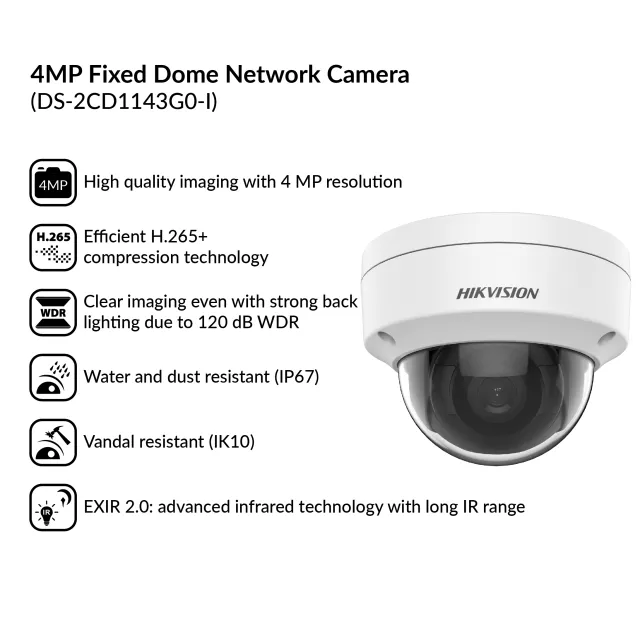

DS-2CD1143G0-I – 4MP Fixed Dome Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67) and vandal resistant (IK10)
EXIR 2.0: advanced infrared technology with long IR range

Product Specifications

Image Sensor	1/3″ progressive scan CMOS
Min. Illumination	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°
Wide Dynamic Range	120 dB
Day & Night	IR cut filter
Field of Vision	2.8 mm: 98.0° (H), 53.1° (V), 114.7° (D) 4 mm: 78.7° (H), 43.1° (V), 92.3° (D)
IR Distance	Up to 30 m
Video Compression	H.265/H.264
Max. Resolution	2560 × 1440
Max. Frame	50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Power	12 VDC ± 25% PoE: 802.3af, Class 3
Working Temperature	-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Material	Aluminum alloy body
Protection	IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

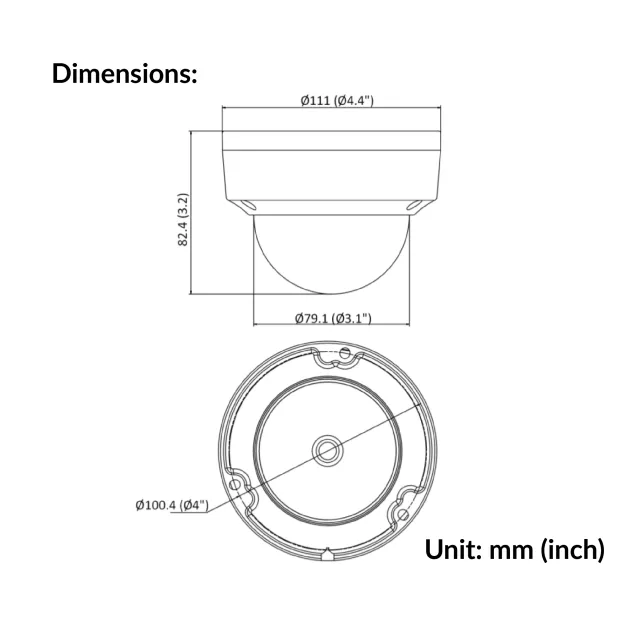

Dimensions	Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″)
Weight	Approx. 360 g (0.8 lb.)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

4MP Fixed Dome Network Camera | DS-2CD1143G0-I

Image Sensor

1/3″ progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Field of Vision

2.8 mm: 98.0° (H), 53.1° (V), 114.7° (D) 4 mm: 78.7° (H), 43.1° (V), 92.3° (D)

IR Distance

Up to 30 m

Video Compression

H.265/H.264

Max. Resolution

2560 × 1440

Max. Frame

50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Power

12 VDC ± 25% PoE: 802.3af, Class 3

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Material

Aluminum alloy body

Protection

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Dimensions

Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″)

Weight

Approx. 360 g (0.8 lb.)
