Sale!

4 Channel NVR with POE | DS-7604NI-Q1:4P 1

4 Channel NVR with POE | DS-7604NI-Q1:4P 2

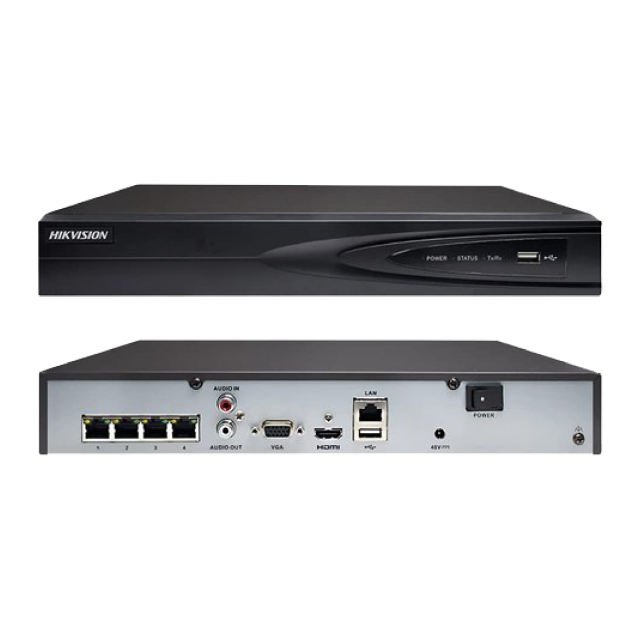

4 Channel NVR with POE | DS-7604NI-Q1/4P

$487.23 incl.GST 8% per sqft

Up to 4-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 40 Mbps incoming bandwidth

Category: All

Description
Reviews (0)

DS-7604NI-Q1/4P NVR
4 Channel NVR with POE

Professional and Reliability

H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

Provide simultaneous HDMI and VGA outputs
HDMI video output at up to 4K resolution

Storage and Playback

1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
Smart search/smart playback to improve the playback efficiency

Smart Function

Support multiple VCA (Video Content Analytics) events
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

Network & Ethernet Access

4 independent PoE network interfaces
1 self-adaptive 10/100 Mbps Ethernet interface
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Product Specifications

IP video input	4-ch Up to 8 MP resolution
Incoming bandwidth	40 Mbps
Outgoing bandwidth	80 Mbps
HDMI output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode	HDMI/VGA simultaneous output
CVBS output	N/A
Audio output	1-ch, RCA (Linear, 1 KΩ)
Decoding format	H.265+/H.265/H.264+/H.264
Recording resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	4-ch
Capability	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Remote connection	16
Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
SATA	1 SATA interface
Capacity	Up to 8 TB capacity for each disk
USB interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Power supply	48 VDC, 1.35 A
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Dimension (W × D × H)	320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Weight (without HDD)	≤ 1 kg (2.2 lb)
