16 channel NVR | DS-7716NI-K4

DS-7716NI-K4\r\n16-ch 1.5U 4K NVR\r\n\r\nProfessional and Reliability\r\n

\r\n
• H.265+ compression effectively reduces the storage space by up to 75%
\r\n
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
\r\n

\r\nHD Video Output\r\n

\r\n
• Provide independent HDMI and VGA outputs
\r\n
• HDMI video output at up to 4K resolution
\r\n

\r\nStorage and Playback\r\n

\r\n
• 4 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
\r\n
• 8/16-ch synchronous playback
\r\n

\r\nSmart Function\r\n

\r\n
• Support multiple VCA (Video Content Analytics) events
\r\n
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
\r\n

\r\nNetwork & Ethernet Access\r\n

\r\n
• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
\r\n
• Hik-Connect for easy network management
\r\n

\r\nProduct Specifications\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n

\r\n IP video input \r\n	\r\n 16-ch \r\n
\r\n Incoming bandwidth \r\n	\r\n 160 Mbps \r\n
\r\n Outgoing bandwidth \r\n	\r\n 160 Mbps \r\n
\r\n HDMI output \r\n	\r\n 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60Hz \r\n
\r\n VGA output \r\n	\r\n 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 x 768/60Hz \r\n
\r\n Video output mode \r\n	\r\n HDMI/VGA independent output \r\n
\r\n CVBS output \r\n	\r\n N/A \r\n
\r\n Audio output \r\n	\r\n 1-ch, RCA (Linear, 1 KΩ) \r\n
\r\n Decoding format \r\n	\r\n H.265/H.265+/H.264/H.264+ \r\n
\r\n Recording resolution \r\n	\r\n 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF \r\n
\r\n Synchronous playback \r\n	\r\n 16-ch \r\n
\r\n Capability \r\n	\r\n 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) \r\n
\r\n Remote connection \r\n	\r\n 64-ch \r\n
\r\n SATA \r\n	\r\n 4 SATA interfaces \r\n
\r\n Capacity \r\n	\r\n Up to 10TB capacity for each disk \r\n
\r\n USB interface \r\n	\r\n Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 \r\n
\r\n Power supply \r\n	\r\n 100 to 240 VAC, 50 to 60Hz \r\n
\r\n Working temperature \r\n	\r\n -10 °C to 55 °C (14 °F to 131 °F) \r\n

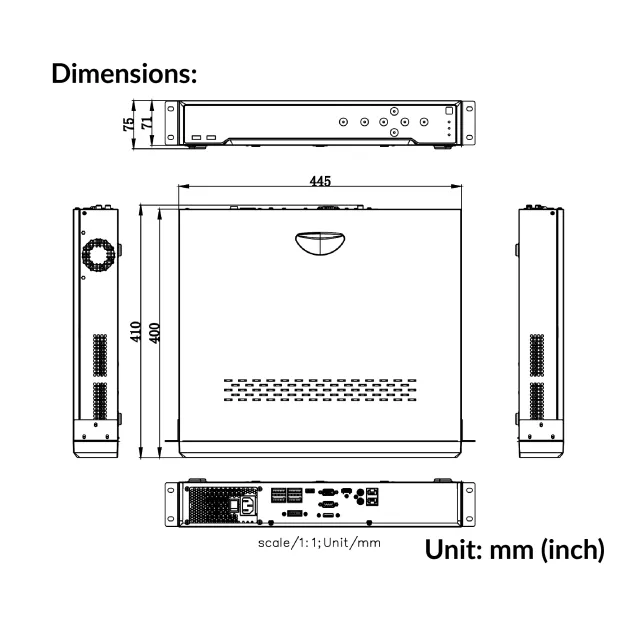

\r\n Dimension (W × D × H) \r\n	\r\n 445 × 400 ×71 mm (17.5\"× 15.7\" × 2.8\") \r\n
\r\n Weight (without HDD) \r\n	\r\n ≤ 5 kg (11 lb.) \r\n
