16 channel NVR | DS-7616NI-Q2/16P

DS-7616NI-Q2/16P\r\n16-ch 1U 16 PoE 4K NVR\r\n\r\nProfessional and Reliability\r\n

\r\n
• H.265+ compression effectively reduces the storage space by up to 75%
\r\n

\r\nHD Video Output\r\n

\r\n
• Provide simultaneous HDMI and VGA outputs
\r\n
• HDMI video output at up to 4K resolution
\r\n

\r\nStorage and Playback\r\n

\r\n
• 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
\r\n
• Smart search/smart playback to improve the playback efficiency
\r\n

\r\nSmart Function\r\n

\r\n
• Support multiple VCA (Video Content Analytics) events
\r\n
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
\r\n

\r\nNetwork & Ethernet Access\r\n

\r\n
• 16 independent PoE network interfaces
\r\n
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
\r\n
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
\r\n

\r\nProduct Specifications\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n

\r\n IP video input \r\n	\r\n 16-ch\r\nUp to 8 MP resolution \r\n
\r\n Incoming bandwidth \r\n	\r\n 160 Mbps \r\n
\r\n Outgoing bandwidth \r\n	\r\n 80 Mbps \r\n
\r\n HDMI output \r\n	\r\n 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,\r\n1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz \r\n
\r\n VGA output \r\n	\r\n 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz \r\n
\r\n Video output mode \r\n	\r\n HDMI/VGA simultaneous output \r\n
\r\n CVBS output \r\n	\r\n N/A \r\n
\r\n Audio output \r\n	\r\n 1-ch, RCA (Linear, 1 KΩ) \r\n
\r\n Decoding format \r\n	\r\n H.265+/H.265/H.264+/H.264 \r\n
\r\n Recording resolution \r\n	\r\n 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF \r\n
\r\n Synchronous playback \r\n	\r\n 16-ch \r\n
\r\n Capability \r\n	\r\n 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) \r\n
\r\n Remote connection \r\n	\r\n 64 \r\n
\r\n Interface \r\n	\r\n 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface \r\n
\r\n SATA \r\n	\r\n 2 SATA interfaces \r\n
\r\n Capacity \r\n	\r\n Up to 8 TB capacity for each disk \r\n
\r\n USB interface \r\n	\r\n Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 \r\n
\r\n Power supply \r\n	\r\n 100 to 240 VAC, 50 to 60 Hz \r\n
\r\n Working temperature \r\n	\r\n -10 °C to 55 °C (14 °F to 131 °F) \r\n

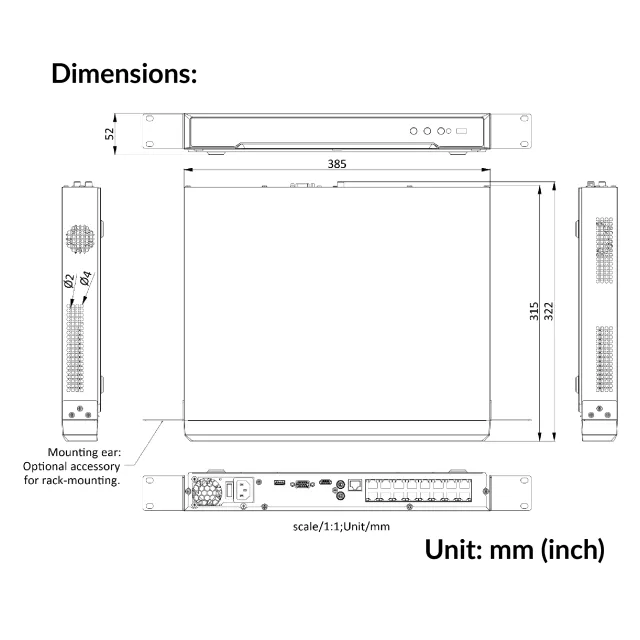

\r\n Dimension (W × D × H) \r\n	\r\n 385 × 315 × 52 mm (15.2\"× 12.4\" × 2.0\") \r\n
\r\n Weight (without HDD) \r\n	\r\n ≤ 2.6 kg (5.7 lb) \r\n

\r\nDownload Datasheet
